TRAVIN MINI MOULDER TP1 PACKAGE OFFER
CE Approved

plastic mould machine tp1 offer travin plastics plastic mould machine sussex uk

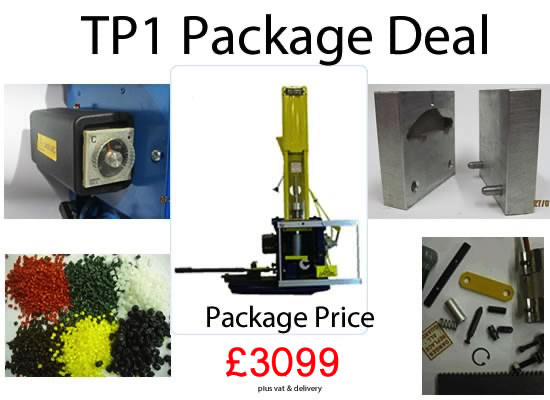

Offer Includes

- TP1

- 1 upgraded Dial temperature display
- 1 two plate mould

- 1 2kg raw plastic granule
- 1 spares pack

Up to 1000 times faster than 3D printing !

SPECIFICATIONS

32 Gram shot weight (maximum) 29cm Capacity
Nickel Plated barrel
Voltage - 230/240 or 110 volts
Temperature - Energy regulator control with reference dial (standard)
Heater Capacity - 600 watts
4" dia x 6" Stroke Cylinder (TP1)
6" Vice opening - maximum
Platens - 4" x 3"
Mould Opening: 2"
Mould can be bolted or floating in machine
Clamping pressure 4.5 ton approx via toggle system
25mm ID barrel offering internal sprung loaded non return valve with platicising spreader
25mm OD fully hardened nickel plated plunger
Machine dimensions: Base - 12" x 18"
TP1 Height - 29 "
TP1 = 80 psi = 5654 psi at nozzle
TP1 air consumption is 17 litres per cycle

GENERAL INFORMATION

The adjustable quick action vice was designed for fast and effective production. One movement of the vice handle opens the vice and ejects the mouldings by a cam (or for the longer mouldings, by two side ejecters fitted in the upright pillars). The top half of the machine is on slides to accommodate different mould widths. The machine is fitted with a guard, interlocked with the air valve.

ADVANTAGES

Easy and simple to operate. It enables 1 man to set simple and inexpensive tooling. Running costs and maintenance are low. It has a double ejection system. It will operate from a standard 80 psi air line.

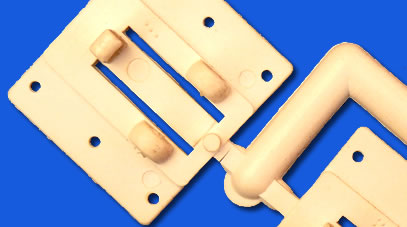

What will the machines produce

Both machines will produce an item weighing up to 32 grams , about 29cm3
Which could be about the size of phone , They will produce any thermo plastic
rubbers , polypropylene , abs , nylons , clear plastics , etc ..... They will produce
items such as pen tops , boxes , plates , tags , lens , test pieces such as 200mm
long test bars ,flexural test pieces , electrical , automotive parts ,caps threads as
well as over mouldings etc
